In short, a close relative of our old friend the 8-bit bus cycle-eaterthe system memory wait state cycle-eaterhaunts us still on all but zero-wait-state 286 and 386 computers, and that means that the prefetch queue cycle-eater is alive and well. (The system memory wait state cycle-eater isnt really a new cycle-eater, but rather a variant of the general wait state cycle-eater, of which the display adapter cycle-eater is yet another variant.) While the 286 in the AT can fetch instructions much faster than can the 8088 in the PC, it can execute those instructions faster still.
The picture is less clear in the 386 world since there are so many different memory architectures, but similar problems can occur in any computer built around a 286 or 386. The prefetch queue cycle-eater is even a factoralbeit a lesser oneon zero-wait-state machines, both because branching empties the queue and because some instructions can outrun even zero5 cycles longer than the official execution time.)
Whats to be learned from all this? Several things:
Of course, those are exactly the rules that apply to 8088 optimization as well. Isnt it convenient that the same general rules apply across the board?
Thanks to its 16-bit bus, the 286 can access word-sized memory variables just as fast as byte-sized variables. Theres a catch, however: Thats only true for word-sized variables that start at even addresses. When the 286 is asked to perform a word-sized access starting at an odd address, it actually performs two separate accesses, each of which fetches 1 byte, just as the 8088 does for all word-sized accesses.
Figure 11.1 illustrates this phenomenon. The conversion of word-sized accesses to odd addresses into double byte-sized accesses is transparent to memory-accessing instructions; all any instruction knows is that the requested word has been accessed, no matter whether 1 word-sized access or 2 byte-sized accesses were required to accomplish it.
The penalty for performing a word-sized access starting at an odd address is easy to calculate: Two accesses take twice as long as one access.
|In other words, the effective capacity of the 286s external data bus is halved when a word-sized access to an odd address is performed.|
That, in a nutshell, is the data alignment cycle-eater, the one new cycle-eater of the 286 and 386. (The data alignment cycle-eater is a close relative of the 8088s 8-bit bus cycle-eater, but since it behaves differentlyoccurring only at odd addressesand is avoided with a different workaround, well consider it to be a new cycle-eater.)

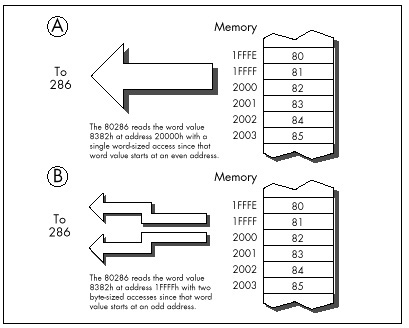

Figure 11.1 The data alignment cycle-eater.
The way to deal with the data alignment cycle-eater is straightforward: Dont perform word-sized accesses to odd addresses on the 286 if you can help it. The easiest way to avoid the data alignment cycle-eater is to place the directive EVEN before each of your word-sized variables. EVEN forces the offset of the next byte assembled to be even by inserting a NOP if the current offset is odd; consequently, you can ensure that any word-sized variable can be accessed efficiently by the 286 simply by preceding it with EVEN.
Listing 11.2, which accesses memory a word at a time with each word starting at an odd address, runs on a 10 MHz AT clone in 1.27 ms per repetition of MOVSW, or 0.64 ms per word-sized memory access. Thats 6-plus cycles per word-sized access, which breaks down to two separate memory accesses3 cycles to access the high byte of each word and 3 cycles to access the low byte of each word, the inevitable result of non-word-aligned word-sized memory accessesplus a bit extra for DRAM refresh.
LISTING 11.2 L11-2.ASM
; ; *** Listing 11.2 *** ; ; Measures the performance of accesses to word-sized ; variables that start at odd addresses (are not ; word-aligned). ; Skip: push ds pop es mov si,1 ;source and destination are the same mov di,si ; and both are not word-aligned mov cx,1000 ;move 1000 words cld call ZTimerOn rep movsw call ZTimerOff
On the other hand, Listing 11.3, which is exactly the same as Listing 11.2 save that the memory accesses are word-aligned (start at even addresses), runs in 0.64 ms per repetition of MOVSW, or 0.32 µs per word-sized memory access. Thats 3 cycles per word-sized accessexactly twice as fast as the non-word-aligned accesses of Listing 11.2, just as we predicted.
LISTING 11.3 L11-3.ASM
; ; *** Listing 11.3 *** ; ; Measures the performance of accesses to word-sized ; variables that start at even addresses (are word-aligned). ; Skip: push ds pop es sub si,si ;source and destination are the same mov di,si ; and both are word-aligned mov cx,1000 ;move 1000 words cld call ZTimerOn rep movsw call ZTimerOff
The data alignment cycle-eater has intriguing implications for speeding up 286/386 code. The expenditure of a little care and a few bytes to make sure that word-sized variables and memory blocks are word-aligned can literally double the performance of certain code running on the 286. Even if it doesnt double performance, word alignment usually helps and never hurts.
Lack of word alignment can also interfere with instruction fetching on the 286, although not to the extent that it interferes with access to word-sized memory variables. The 286 prefetches instructions a word at a time; even if a given instruction doesnt begin at an even address, the 286 simply fetches the first byte of that instruction at the same time that it fetches the last byte of the previous instruction, as shown in Figure 11.2, then separates the bytes internally. That means that in most cases, instructions run just as fast whether theyre word-aligned or not.
There is, however, a non-word-alignment penalty on branches to odd addresses. On a branch to an odd address, the 286 is only able to fetch 1 useful byte with the first instruction fetch following the branch, as shown in Figure 11.3. In other words, lack of word alignment of the target instruction for any branch effectively cuts the instruction-fetching power of the 286 in half for the first instruction fetch after that branch. While that may not sound like much, youd be surprised at what it can do to tight loops; in fact, a brief story is in order.
