The ability to split the screen into two largely independent portions onedisplayed above the other on the screenis one of the more intriguing capabilities of the VGA and EGA. The split screen feature can be used for popups (including popups that slide smoothly onto the screen), or simply to display two separate portions of display memory on a single screen. While its possible to accomplish the same effects purely in software without using the split screen, software solutions tend to be slow and hard to implement.
By contrast, the basic operation of the split screen is fairly simple, once you grasp the various coding tricks required to pull it off, and understand the limitations and pitfallslike the fact that the EGAs split screen implementation is a little buggy. Furthermore, panning with the split screen enabled is not as simple as it might seem. All in all, we do have some ground to cover.
Lets start with the basic operation of the split screen.
The operation of the split screen is simplicity itself. A split screen start scan line value is programmed into two EGA registers or three VGA registers. (More on exactly which registers in a moment.) At the beginning of each frame, the video circuitry begins to scan display memory for video data starting at the address specified by the start address registers, just as it normally would. When the video circuitry encounters the specified split screen start scan line in the course of scanning video data onto the screen, it completes that scan line normally, then resets the internal pointer which addresses the next byte of display memory to be read for video data to zero. Display memory from address zero onward is then scanned for video data in the usual way, progressing toward the high end of memory. At the end of the frame, the pointer to the next byte of display memory to scan is reloaded from the start address registers, and the whole process starts over.

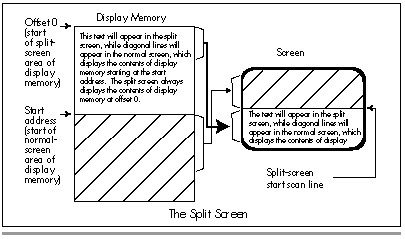

The net effect: The contents of display memory starting at offset zero are displayed starting at the scan line following the specified split screen start scan line, as shown in Figure 30.1. Its important to understand that the scan line that matches the split screen scan line is not part of the split screen; the split screen starts on the following scan line. So, for example, if the split screen scan line is set to zero, the split screen actually starts at scan line 1, the second scan line from the top of the screen.
If both the start address and the split screen start scan line are set to 0, the data at offset zero in display memory is displayed as both the first scan line on the screen and the second scan line. There is no way to make the split screen cover the entire screenit always comes up at least one scan line short.
Figure 30.1 Display memory and the split screen.
So, where is the split screen start scan line stored? The answer varies a bit, depending on whether youre talking about the EGA or the VGA. On the EGA, the split screen start scan line is a 9-bit value, with bits 7-0 stored in the Line Compare register (CRTC register 18H) and bit 8 stored in bit 4 of the Overflow register (CRTC register 7). Other bits in the Overflow register serve as the high bits of other values, such as the vertical total and the vertical blanking start. Since EGA registers arealas!not readable, you must know the correct settings for the other bits in the Overflow registers to use the split screen on an EGA. Fortunately, there are only two standard Overflow register settings on the EGA: 11H for 200-scan-line modes and 1FH for 350-scan-line modes.
The VGA, of course, presents no such problem in setting the split screen start scan line, for it has readable registers. However, the VGA supports a 10-bit split screen start scan line value, with bits 8-0 stored just as with the EGA, and bit 9 stored in bit 6 of the Maximum Scan Line register (CRTC register 9).
Turning the split screen on involves nothing more than setting all bits of the split screen start scan line to the scan line after which you want the split screen to start appearing. (Of course, youll probably want to change the start address before using the split screen; otherwise, youll just end up displaying the memory at offset zero twice: once in the normal screen and once in the split screen.) Turning off the split screen is a simple matter of setting the split screen start scan line to a value equal to or greater than the last scan line displayed; the safest such approach is to set all bits of the split screen start scan line to 1. (That is, in fact, the split screen start scan line value programmed by the BIOS during a mode set.)
All of these points are illustrated by Listing 30.1. Listing 30.1 fills display memory starting at offset zero (the split screen area of memory) with text identifying the split screen, fills display memory starting at offset 8000H with a graphics pattern, and sets the start address to 8000H. At this point, the normal screen is being displayed (the split screen start scan line is still set to the BIOS default setting, with all bits equal to 1, so the split screen is off), with the pixels based on the contents of display memory at offset 8000H. The contents of display memory between offset 0 and offset 7FFFH are not visible at all.
Listing 30.1 then slides the split screen up from the bottom of the screen, one scan line at a time. The split screen slides halfway up the screen, bounces down a quarter of the screen, advances another half-screen, drops another quarter-screen, and finally slides all the way up to the top. If youve never seen the split screen in action, you should run Listing 30.1; the smooth overlapping of the split screen on top of the normal display is a striking effect.
Listing 30.1 isnt done just yet, however. After a keypress, Listing 30.1 demonstrates how to turn the split screen off (by setting all bits of the split screen start scan line to 1). After another keypress, Listing 30.1 shows that the split screen can never cover the whole screen, by setting the start address to 0 and then flipping back and forth between the normal screen and the split screen with a split screen start scan line setting of zero. Both the normal screen and the split screen display the same text, but the split screen displays it one scan line lower, because the split screen doesnt start until after the first scan line, and that produces a jittering effect as the program switches the split screen on and off. (On the EGA, the split screen may display two scan lines lower, for reasons Ill discuss shortly.)
